Hydromette
CH 17

Ref.Nr. 30003150MultiCombi
Multifunctional measuring instrument for measuring wood moisture, building moisture and air humidity as well as temperature and air velocity
Description

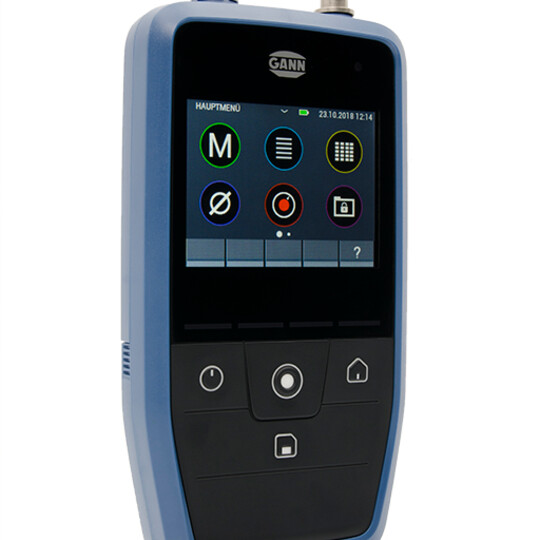

The Hydromette CH 17 is a multifunctional measuring instrument for measuring wood moisture, building moisture and air humidity as well as temperature and air velocity.

The robust touch display in combination with modern evaluation and storage possibilities enables a completely new variety of options.

In the field of wood moisture measurement, different resistance measurement electrodes are used depending on the thickness and texture of the wood. Thus precision measurements of sawn timber (up to 180 mm thickness), chipboard and OSB boards, veneers, wood chips and similar bulk materials are possible. The automatic temperature compensation corrects measured values depending on the wood temperature.

The capacitive measuring method is used for the non-destructive moisture measurement of building materials (e.g. screeds, mortars, plasters, concrete, bricks, thermal insulating materials). This time-saving application method is ideal for detecting leaks or for monitoring drying processes in new buildings or during renovation work.

Special resistance measurement electrodes are available for the creation of exact moisture profiles and for depth measurements in building materials for the various application purposes.


Humidity and air temperature are measured by RF-T and RH-T series probes that are equipped with high quality sensors.

In addition to air temperature, surface temperatures (based on Pt100 or infrared) and material temperatures (also based on Pt100) can be measured.

In combination with the LG-25 BL air speed sensor, the Hydromette CH 17 is ideal for measuring the smallest air flows and is characterised by long-term stability, direction recognition and fast commissioning.

For clean room applications, a high-precision calibration for the range around 0.45 m/s is also possible.

With its various evaluation and storage options (especially in conjunction with the GANN Dialog Pro software), the device is an indispensable aid, e.g. for experts. Hydromette CH 17 also provides optimum support for all other occupational groups in the construction industry as it covers a wide range of requirements.

Applications
Wood Moisture
Wood Moisture
Resistance-based measuring
Resistance-based measuring
Measuring Ranges
4 to 100 % (dry mass)
Electrodes & Sensors

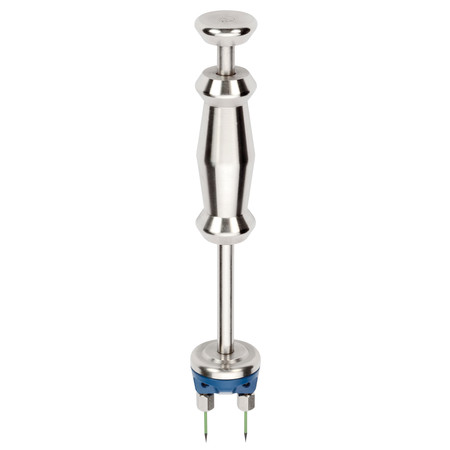

M 18
M 1831003500
M 20
M 2031003300
M 20-OF 15
M 20-OF 1531004315
M 20-DS 16
M 20-DS 1631004310

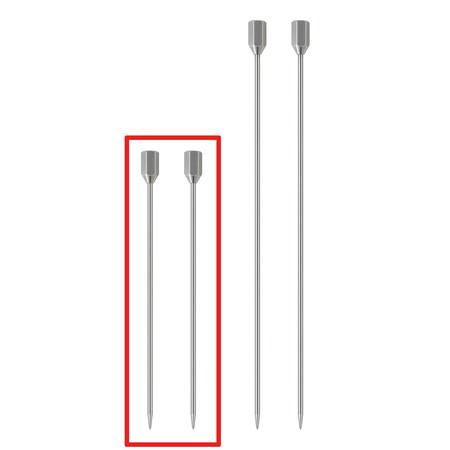

M 20-HW 200
M 20-HW 20031004350

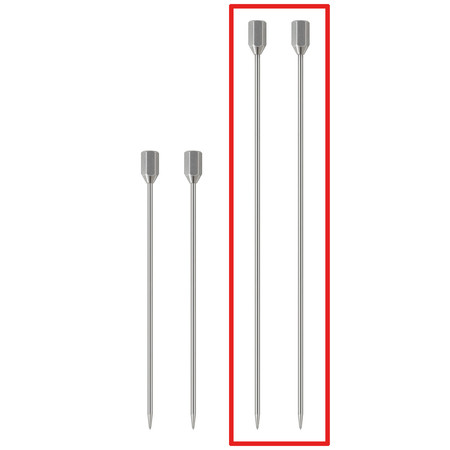

M 20-HW 300
M 20-HW 30031004355

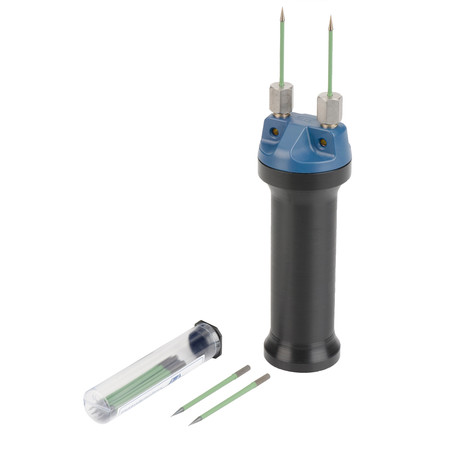

M 19
M 1931003400
M 20-DS 16-i
M 20-DS 16-i31004311
Structural Moisture
Structural Moisture
Capacitive measuring
Capacitive measuring
Measuring Ranges
0 to 199 digits
0,3 to 8,5 wt.-%
0,3 to 6,5 CM-%
Electrodes & Sensors

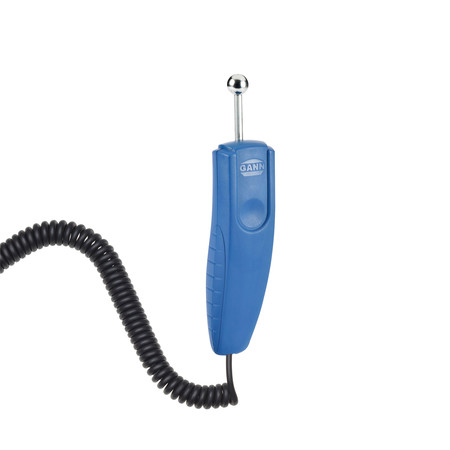

B 55 BL
B 55 BL31013755
Resistance-based measuring
Resistance-based measuring
Measuring Ranges
0,3 to 25 wt.-%
0,3 to 12 CM-%
Electrodes & Sensors
M 20
M 2031003300
M 6
M 631003700
M 20-OF 15
M 20-OF 1531004315
M 21-100
M 21-10031003200
M 21-250
M 21-25031003250
M 25-100
M 25-10031003740
M 25-300
M 25-30031003743
M 6-Bi 200
M 6-Bi 20031003702
M 6-Bi 300
M 6-Bi 30031003703
M 20-Bi 200
M 20-Bi 20031004360
M 20-Bi 300
M 20-Bi 30031004365
M 6-150
M 6-15031003706
M 6-250
M 6-25031003707
Air Humidity
Air Humidity
Capacitive measuring
Capacitive measuring
Measuring Ranges
0 to 100 % R.H.
±1,8 (10 to 90 % R.H.) Sensor Accuracy
Electrodes & Sensors

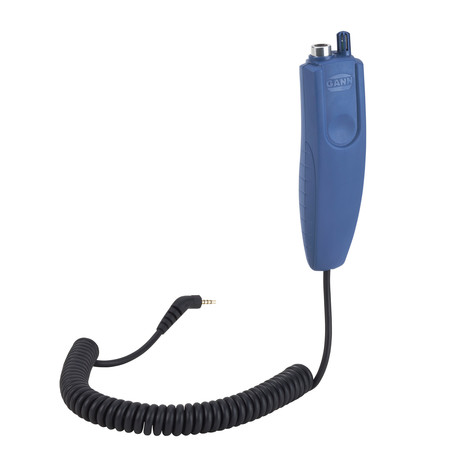

TF-IR BL
TF-IR BL31013100
16 K-21
16 K-2131003260
16 K-25
16 K-2531003262
16 K-25 M
16 K-25 M31003264
16 K-25 P
16 K-25 P31003266
Air Temperature
Air Temperature
Band Gap
Band Gap
Measuring Ranges
-20 to 80 °C
±0,3 (-10 to 70 °C) Sensor Accuracy
Electrodes & Sensors
TF-IR BL
TF-IR BL31013100
16 K-21
16 K-2131003260
16 K-25
16 K-2531003262
16 K-25 M
16 K-25 M31003264
16 K-25 P
16 K-25 P31003266
Surface Temperature
Surface Temperature
Infrared measurement
Infrared measurement
Measuring Ranges
-40 to 380 °C
±0,5 (0 to 60 °C) Sensor Accuracy
Electrodes & Sensors
TF-IR BL
TF-IR BL31013100
Pt100
Pt100
Measuring Ranges
-50 to 250 °C
Electrodes & Sensors
OT 100 BL
OT 100 BL31013170
Material Temperature
Material Temperature
Pt100
Pt100
Measuring Ranges
-30 to 170 °C
Electrodes & Sensors
ET 10 BL
ET 10 BL31013165
TT 40 BL
TT 40 BL31013180
Air Speed
Air Speed
Thermal flow sensor
Thermal flow sensor
Measuring Ranges
-2,5 to 2,5 m/s
Electrodes & Sensors
LG-25 BL
LG-25 BL30013200
Specifications
  • Various software licences are available: Basic und Advanced
    • see the info sheet below for more information
  • Modern operating concept: Operation via capacitive touch input and haptic silicone buttons
  • Robust 3.5“ TFT colour display (resolution: 320 x 240 pixels))
  • Processing & evaluation of measurement data via the new GANN Dialog Pro software
  • Micro SD card slot for using an external memory card
  • Power supply: 6x 1,5-volt batteries are included
    • Or external power supply via USB (connection of a power bank) is possible
Software

GANN Dialog Pro

GANN Dialog Pro can be run with the following operating systems: Windows 7, Windows 8.x and Windows 10.
