Wood Moisture

Stick-in Electrode Pin Pair
M 20-HW 300

Ref.Nr. 31004355
Electrodes for resistance-based moisture measurements in chips, wood wool, veneer stacks, and bulk materials
DescriptionUsecases

Description

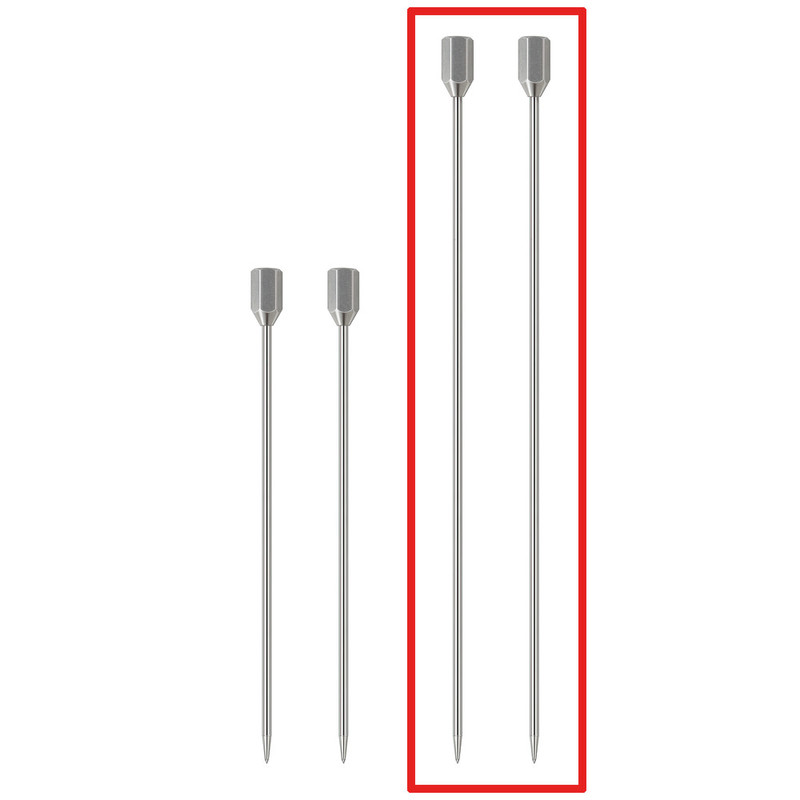

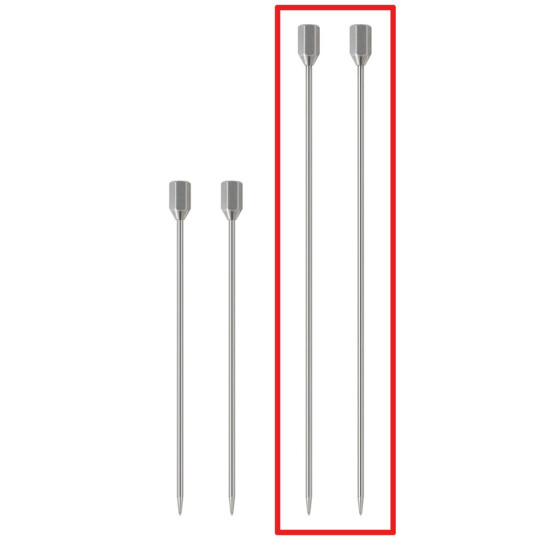

The M 20-HW 300 Stick-in electrode pin pair is used for resistance-based moisture measurements in chips, wood wool, veneer stacks, and bulk materials.

The measuring electrodes are made of stainless steel and are therefore robust and resilient. No rust, which might soil the surface and affect the contact to the material to be measured, can form.
As they are uninsulated, a large contact area is ensured. This reduces the risk of incorrect measurements and increases the reliability of the measurement results.

Measuring ranges

Wood Moisture
The electrode pair can be used with all hydromettes based on the resistance measurement method.
Resistance-based measuring
Resistance-based measuring
Measuring ranges
min.4 to max.100 % (dry mass)
min.31 to max.41 % water content

The actual measuring range depends on the connected measuring instrument.

Show compatible measuring instruments

Specifications

Pins: 300 mm (length) and 4 mm (diameter)

Carrier SystemNeeds one of these carrier systems

12 Measuring instruments compatible2 Usecases

Compatible instrumentsCan be used with these measuring instruments

32 Electrodes selectable
4 to 100 % (dry mass)
0 to 200 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0.3 to 25 wt.-%
0.3 to 12 CM-%
0 to 100 % R.H.
±1.8 (10 to 90 % R.H.) Sensor Accuracy
-20 to 80 °C
±0.3 (0 to 60 °C) Sensor Accuracy
-40 to 380 °C
±0.5 (0 to 60 °C) Sensor Accuracy
-50 to 250 °C
-30 to 170 °C
-2,5 to 2,5 m/s
6 Electrodes selectable
5 to 40 % (dry mass)
8 Electrodes selectable
5 to 40 % (dry mass)
4.5 to 45 % (dry mass)
7 Electrodes selectable
5 to 70 % (dry mass)
31 to 41 % water content
-50 to 250 °C
6 Electrodes selectable
5 to 50 % (dry mass)
5 to 70 % (dry mass)
21 Electrodes selectable
0.1 to 42.2 wt.-%
0.1 to 9.6 CM-%
0.7 to 60 wt.-%
2.3 to 87 digits
0 to 200 digits
5.5 to 58 % (dry mass)
-50 to 250 °C
-50 to 350 °C
6 Electrodes selectable
4 to 30 % (dry mass)
6 Electrodes selectable
4 to 60 % (dry mass)
21 Electrodes selectable
4 to 30 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
-20 to 199.9 °C
29 Electrodes selectable
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
-20 to 200 °C
-50 to 250 °C
-50 to 350 °C
41 Electrodes selectable
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
