Structural Moisture

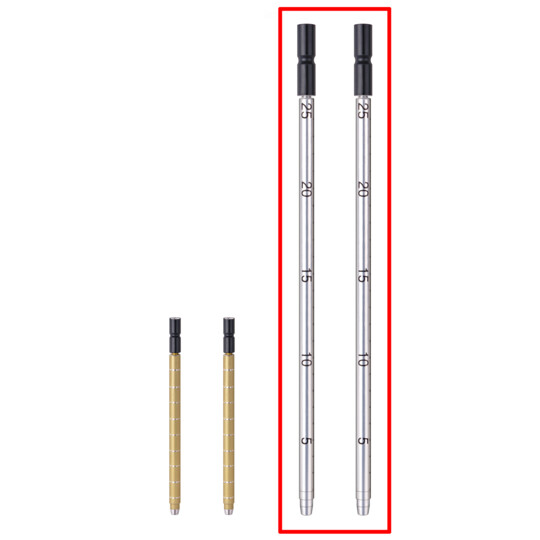

Deep Measurement Electrode Pair
M 21-250

Ref.Nr. 31003250
Electrode pair espcially used for deep measurements
Description

Description

The deep electrodes M 21-250 were designed to measure the moisture content in structural moisture; in particular for deep measurements of all kinds of building materials

By using the deep electrodes moisture profiles of the test object can easily be created. In order to ensure the conductivity between the material to be measured and the electrode pins, contact paste has to be used.

The electrodes should always be used in pairs and optimally placed at a distance of approx. 8 - 10 cm from each other in the material to be measured.

Measuring ranges

Structural Moisture
The electrode pair can be used with all hydromettes based on the resistance measurement method.
Resistance-based measuring
Resistance-based measuring
Measuring Ranges
min.0 to max.80 digits
min.0,3 to max.42.2 wt.-%
min.0,3 to max.12 CM-%

The actual measuring range depends on the connected measuring instrument.

Show compatible measuring instruments

Specifications

  • Measurements up until a depth of 10 cm are possible; the sample holes have to be prebored with a drill 8 mm Ø
  • With the help of the electrodes a profile of the moisture content of the material to be measured can be compiled by measuring in layers
  • The insulated stem prevents surface moisture from skewing the measuring result

Compatible instrumentsCan be used with these measuring instruments

Wood MoistureStructural MoistureAir HumidityAir TemperatureSurface TemperatureMaterial TemperatureAir Speed
33 Electrodes selectable
CH 17
4 to 100 % (dry mass)
0 to 199 digits
0,3 to 8,5 wt.-%
0,3 to 6,5 CM-%
0,3 to 25 wt.-%
0,3 to 12 CM-%
0 to 100 % R.H.
±1,8 (10 to 90 % R.H.) Sensor Accuracy
-20 to 80 °C
±0,3 (-10 to 70 °C) Sensor Accuracy
-40 to 380 °C
±0,5 (0 to 60 °C) Sensor Accuracy
-50 to 250 °C
-30 to 170 °C
-2,5 to 2,5 m/s
Structural MoistureWood MoistureSurface TemperatureMaterial Temperature
21 Electrodes selectable
BL E
0.1 to 42.2 wt.-%
0.2 to 9.9 CM-%
0 to 200 digits
5.5 to 58 % (dry mass)
-50 to 250 °C
-50 to 350 °C
Wood MoistureStructural MoistureSurface Temperature
21 Electrodes selectable
HB 30
4 to 30 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
-20 to 199.9 °C
Wood MoistureStructural MoistureAir TemperatureSurface TemperatureMaterial Temperature
29 Electrodes selectable
HT 85 T
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
-20 to 200 °C
-50 to 250 °C
-50 to 350 °C
Structural MoistureAir HumidityAir TemperatureSurface TemperatureMaterial Temperature
37 Electrodes selectable
UNI 2
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
Wood MoistureStructural MoistureAir HumidityAir TemperatureSurface TemperatureMaterial Temperature
41 Electrodes selectable
RTU 600
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C

Replacement parts

Box of contact paste
Box of contact paste
31005400
