Capacitive Probe for Structural Moisture
B 55 BL

Ref.Nr. 31013755

Non-destructive measuring in building materials of any kind.

DescriptionUsecases

Description

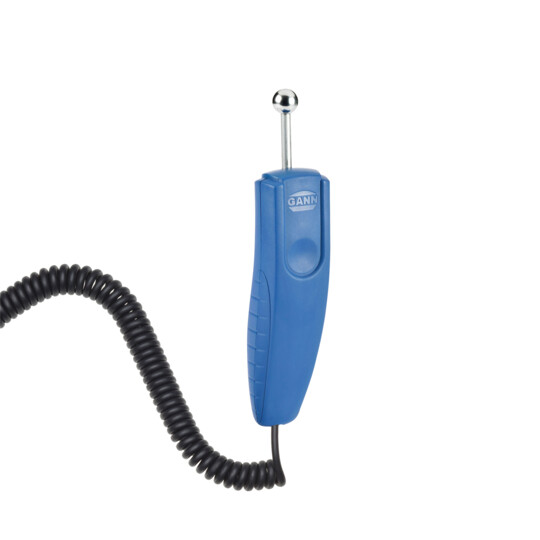

The B 55 BL probe is an electronic structural moisture indicator for non-destructive measurements in building materials. The probe uses the capacitive radio frequency principle of measurement.

The versatile ball sensor is used to sense moisture in building materials of any kand as well as to determine the moisture distribution in walls, ceilings, and floors.

The Auto Sensor Technology used enables the Hydromette unit to automatically detect the probe connected and to adapt the measured value readout to the respective sensor type.

The B 55 BL probe is an ideal pre-tester for all CM measurments and resistance-based meters.

Measuring ranges

Capacitive measuring
Capacitive measuring
Measuring Ranges
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%

Specifications

  • High penetration of up to 120 mm (depending on material density)
  • Audible alarm in case a user-defined limit is exceeded. The limit can be set from 0.1 to 199 digits by using a Hydromette unit

Compatible instrumentsCan be used with these measuring instruments

Wood MoistureStructural MoistureAir HumidityAir TemperatureSurface TemperatureMaterial TemperatureAir Speed
33 Electrodes selectable
CH 17
4 to 100 % (dry mass)
0 to 199 digits
0,3 to 8,5 wt.-%
0,3 to 6,5 CM-%
0,3 to 25 wt.-%
0,3 to 12 CM-%
0 to 100 % R.H.
±1,8 (10 to 90 % R.H.) Sensor Accuracy
-20 to 80 °C
±0,3 (-10 to 70 °C) Sensor Accuracy
-40 to 380 °C
±0,5 (0 to 60 °C) Sensor Accuracy
-50 to 250 °C
-30 to 170 °C
-2,5 to 2,5 m/s
Structural MoistureWood MoistureSurface TemperatureMaterial Temperature
21 Electrodes selectable
BL E
0.1 to 42.2 wt.-%
0.2 to 9.9 CM-%
0 to 200 digits
5.5 to 58 % (dry mass)
-50 to 250 °C
-50 to 350 °C
Structural MoistureAir HumidityAir TemperatureSurface TemperatureMaterial Temperature
13 Electrodes selectable
BL UNI 11
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 80 °C
-40 to 380 °C
-50 to 250 °C
-50 to 350 °C
