Wood Moisture

Stick-in Electrode
M 19

Ref.Nr. 31003400
Electrode used for measuring moisture of finished thermal insulation composite systems
DescriptionUsecases

Description

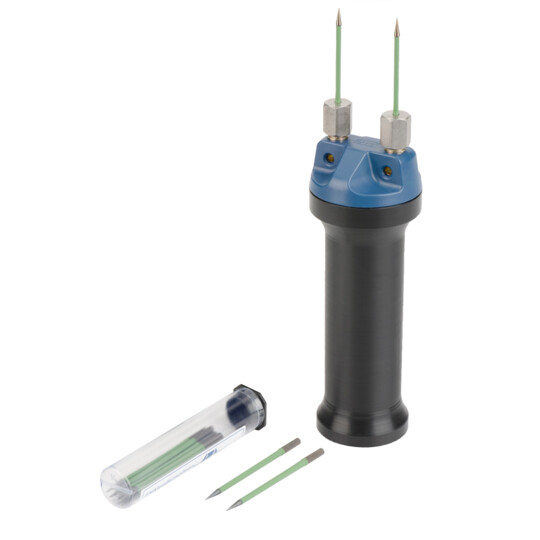

The M 19 push-in electrode is used for measuring in finished thermal insulation composite systems

It is equipped with teflon insulated electrode pins (10 pieces 60 mm long are included in delivery).

The electrode body is made out of an impact-resistant plastic.


Measuring ranges

Resistance-based measuring
Resistance-based measuring
Measuring ranges
min.4 to max.100 % (dry mass)

The actual measuring range depends on the connected measuring instrument.

Show compatible measuring instruments

Specifications

Wood fibre insulants:

  • In combination with a Hydromette BL H 41 the moisture content of wood fibre insulants can be measured
  • The insulated electrode pins enable measuring even in plastered insulation boards



Thermal insulation composite systems:

Comparative measurements are possible with

  • EPS (expanded polystyrene)
  • Mineral wood
  • Mineral insulation boards
  • XPS rigid foam
  • PUR rigis foam
  • Cellulose
  • Perlite
  • Hemp/Flax

Compatible instrumentsCan be used with these measuring instruments

33 Electrodes selectable
4 to 100 % (dry mass)
0 to 199 digits
0,3 to 8,5 wt.-%
0,3 to 6,5 CM-%
0,3 to 25 wt.-%
0,3 to 12 CM-%
0 to 100 % R.H.
±1,8 (10 to 90 % R.H.) Sensor Accuracy
-20 to 80 °C
±0,3 (-10 to 70 °C) Sensor Accuracy
-40 to 380 °C
±0,5 (0 to 60 °C) Sensor Accuracy
-50 to 250 °C
-30 to 170 °C
-2,5 to 2,5 m/s
8 Electrodes selectable
5 to 40 % (dry mass)
4.5 to 45 % (dry mass)
