Surface Temperature

Pt100 Temperature Probe
OTW 90

Ref.Nr. 31003175

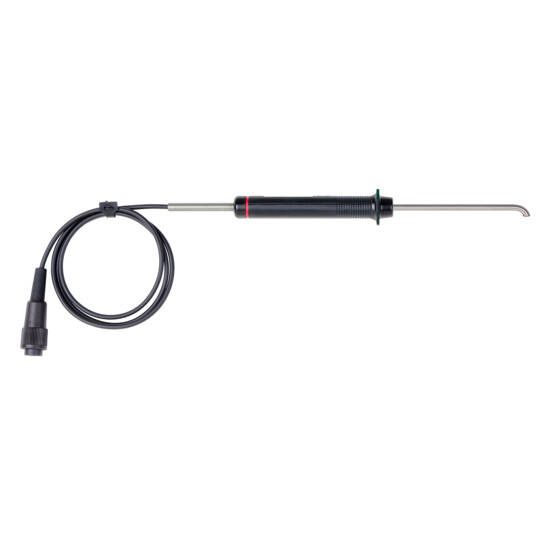

Surface temperature probe

Description

Description

The OTW 90 is an angled probe for special temperature measurements, e.g. for veneer presses.

Measuring ranges

Pt100
Pt100
Measuring Ranges
-50 to 250 °C

Specifications

  • Pt100 sensor in 4-wire technology
  • Sensor pipe: 100 mm (Length), 5 mm (Ø)

Compatible instrumentsCan be used with these measuring instruments

Wood MoistureStructural MoistureAir TemperatureSurface TemperatureMaterial Temperature
29 Electrodes selectable
HT 85 T
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
-20 to 200 °C
-50 to 250 °C
-50 to 350 °C
Structural MoistureAir HumidityAir TemperatureSurface TemperatureMaterial Temperature
24 Electrodes selectable
UNI 1
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
Structural MoistureAir HumidityAir TemperatureSurface TemperatureMaterial Temperature
37 Electrodes selectable
UNI 2
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
Wood MoistureStructural MoistureAir HumidityAir TemperatureSurface TemperatureMaterial Temperature
41 Electrodes selectable
RTU 600
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
