Surface Temperature

Pt100 Temperature Probe
OT 100

Probes & Sensors
OT 100
OT100
Ref.Nr. 31003170

Surface temperature probe

Description
Description
OT 100
OT 100
OT 100
Have questions?

Description

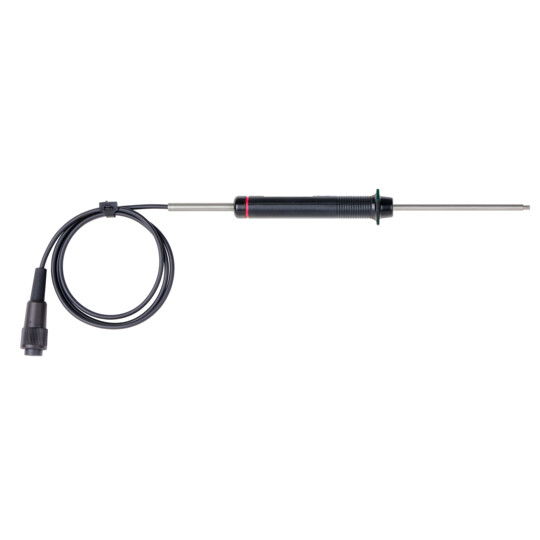

The OT 100 has a suspended sensor tip with thermal separation and resulting optimised measured value collection, e.g. on wall surfaces.

Measuring ranges

Surface Temperature

Surface Temperature

Pt100
Pt100
Measuring ranges
-50 to 250 °C

Specifications

  • Pt100 sensor in 4-wire technology
  • Sensor pipe: 110 mm (Length), 5 mm (Ø)
  • Optional: thermally conductive paste

Compatible instrumentsCan be used with these measuring instruments

HT 85 T
Wood Moisture
Structural Moisture
Air Temperature
Surface Temperature
Material Temperature
MultiCombi
29 Electrodes selectable
HT 85 T
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
-20 to 200 °C
-50 to 250 °C
-50 to 350 °C
30001370
UNI 1
Structural Moisture
Air Humidity
Air Temperature
Surface Temperature
Material Temperature
MultiCombi
24 Electrodes selectable
UNI 1
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
30001430
UNI 2
Structural Moisture
Air Humidity
Air Temperature
Surface Temperature
Material Temperature
MultiCombi
37 Electrodes selectable
UNI 2
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
30001550
RTU 600
Wood Moisture
Structural Moisture
Air Humidity
Air Temperature
Surface Temperature
Material Temperature
MultiCombi
41 Electrodes selectable
RTU 600
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
30001670
