Air HumidityAir Temperature

Hydromette

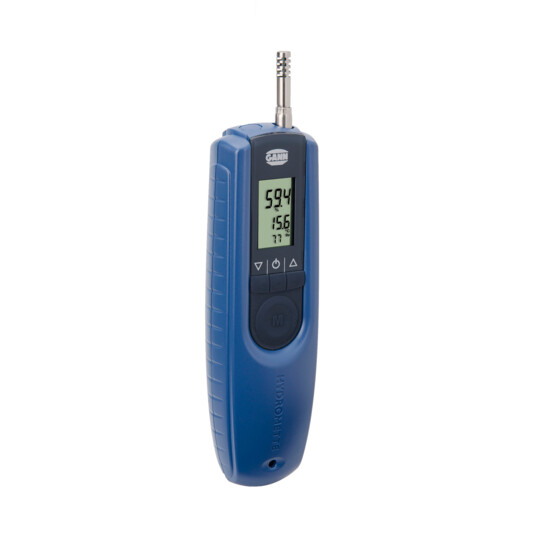

BL Compact TF 3

Ref.Nr. 31019830

Precise thermo hygrometer

Description

Description

The BL Compact TF 3 unit is a precise thermo hygrometer for measuring the temperature and air relative humidity in many applications (e.g. residental space, air conditioning, printing shops, warehouses, museums).
The measuring sensor is exchangeable. Several of these sensors (plug-in TF stick) can be put in different places (environments). Thus, successive measurements in those places can be carried out more quickly, for long adaption times can be avoided (compared to a meter with fixed sensor).

Measuring ranges

Capacitive measuring
Capacitive measuring
Measuring Ranges
0 to 100 % R.H.
±3 (20 to 80 % R.H.) Sensor Accuracy
Electrodes & Sensors
16 K-21
16 K-21
31003260
16 K-25
16 K-25
31003262
16 K-25 M
16 K-25 M
31003264
16 K-25 P
16 K-25 P
31003266
Band Gap
Band Gap
Measuring Ranges
-20 to 80 °C
±0.5 (0 to 60 °C) Sensor Accuracy
Electrodes & Sensors
16 K-21
16 K-21
31003260
16 K-25
16 K-25
31003262
16 K-25 M
16 K-25 M
31003264
16 K-25 P
16 K-25 P
31003266

Specifications

  • Handy pocket-sized moisture measuring meter for fast single and series measurements
  • Display of three values via LCD, resolution: 0.1 % or 0.1 °C
  • Automatic calculation of dew point temperature and equilibrium wood moisture content (EMC)
  • Display of absolute air humidity in g/m³
  • USB interface for transferring the measured values to a PC on which the DIALOG BL+ optional software is excuted (for long-term measurements or process monitoring)
  • For special requirements, other TF sticks with different filter types are optionally available
  • Min, Max and Hold functions for measured values
  • Storage of the 5 most recent measured values
  • Power supply: a 9-volt battery is included
Length0.175 m0.574 ft (0.175 m)
Width0.050 m0.164 ft (0.050 m)
Height0.030 m0.098 ft (0.030 m)
Weight0.210 kg0.463 lb (0.210 kg)

Accessories

Plastic Box
Plastic Box
31015099
Plastic Box II
Plastic Box II
31015058
MK 18 Connecting Cable
MK 18 Connecting Cable
31016720
MK 26 Connecting Cable
MK 26 Connecting Cable
31016920
