BL Compact B 3
Have questions?Description

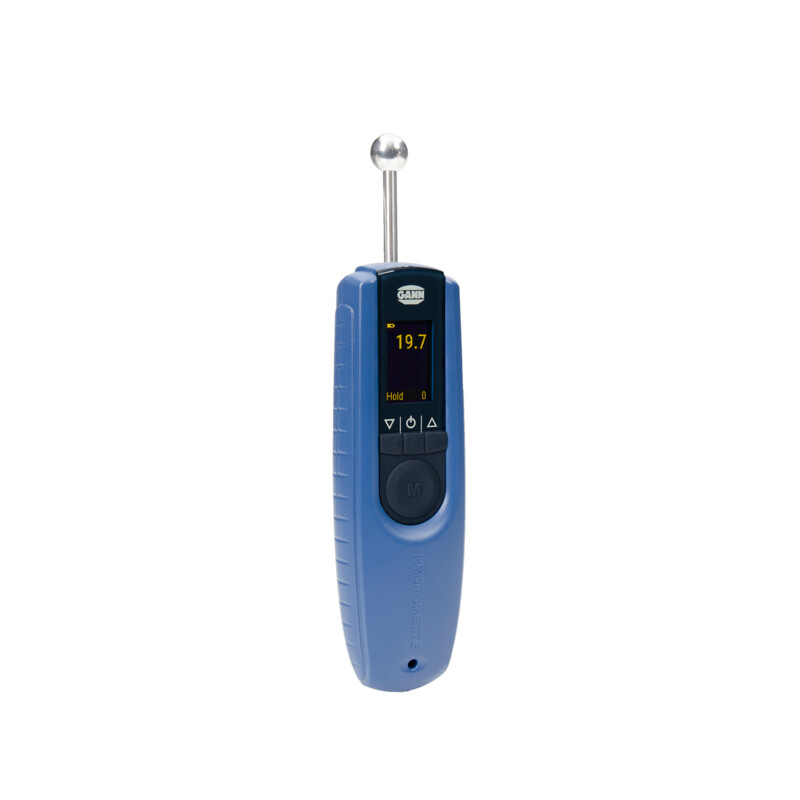

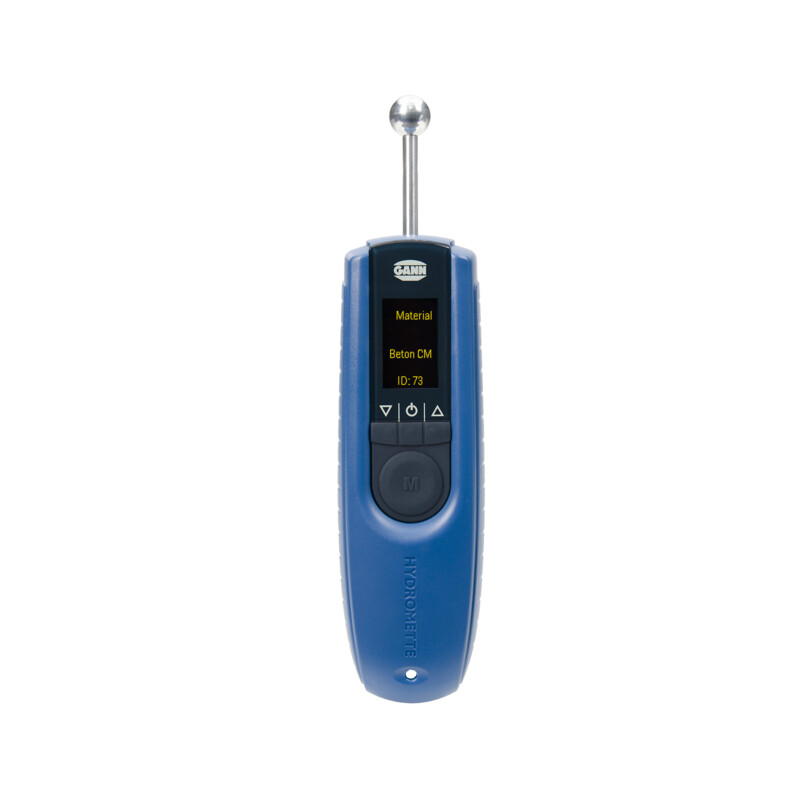

The BL Compact B 3 unit is an electronic structural moisture indicator for non-destructive building material moisture measurement. The meter uses the dielectric constant / radio frequency principle of measurement.

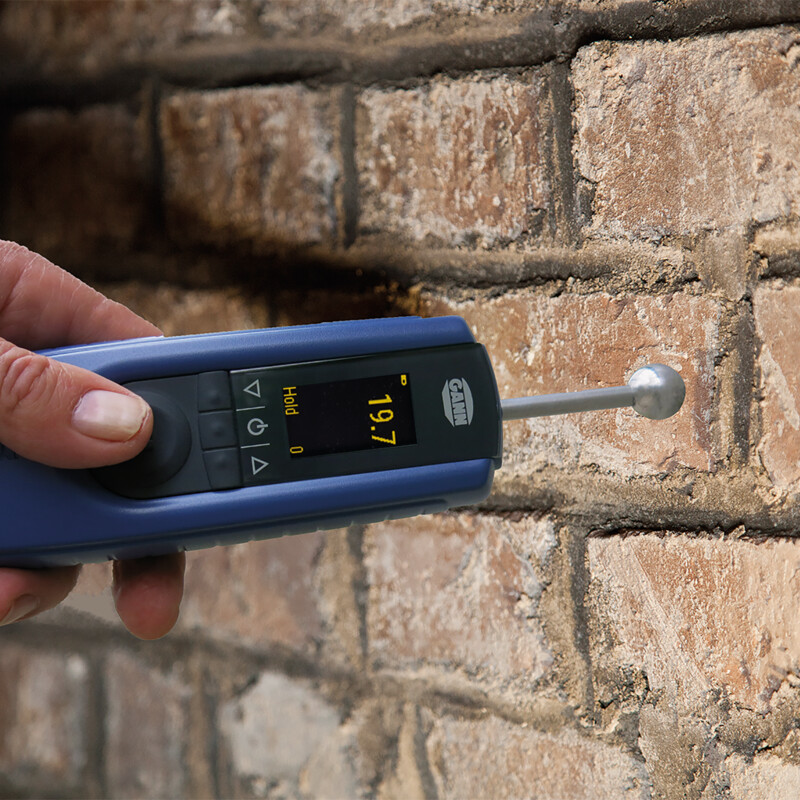

The versatile ball sensor is used to sense moisture in building materials of any kind as well as to determine the moisture distribution in walls, ceilings, and floors.
The BL Compact B 3 unit is an ideal pre-tester for all CM measurments and resistance-based meters.
Measuring ranges
Specifications
- Handy pocket-sized moisture measuring meter for fast single and series measurements
- Self-illuminating OLED display
- Intuitive, easy-to-navigate menu system optimized for quick navigation
- For each building material, an individual limit may be set the violation of which will be indicated by an audible alert.
- Integrated temperature sensor for temperature compensation of the measurement circuit
- Scan mode (1 - 199,9 digits) and direct display of moisture values in weight-% or CM-% for building materials, resolution: 0.1 %
- Characteristic curves for 7 types of building materials
- The measured values can be saved in batches and transferred to Gann Dialog Pro
- USB interface: firmware can be updated via Gann Dialog Pro
- Power supply: a 9-volt battery is included
| Length | 0.175 m0.574 ft (0.175 m) |
| Width | 0.05 m0.164 ft (0.05 m) |
| Height | 0.03 m0.098 ft (0.03 m) |
| Weight | 0.17 kg0.375 lb (0.17 kg) |
