Air HumidityAir TemperatureStructural Moisture

Hydromette

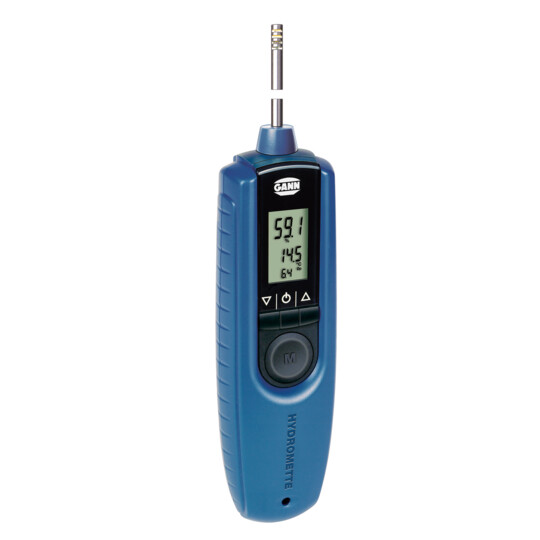

BL Compact RH-T 320

Ref.Nr. 30012041CombiStandalone

Precise thermo hygrometer

Description

The BL Compact RH-T 320 unit is a precise thermo hygrometer designed to be used for quickly measuring the relative humidity and temperature of air.
Using programmed sorption isotherms, the weight percentages can be determined for various building and insulating materials, as well as for hardwood and softwood.

The meter has a slim sensor pipe and is therefore suited to be used for a large variety of applications, e.g. humidity analyses in cases of damage, while the building is drying as well as for checking whether flooring or wall covering may be laid.

Applications
Air Humidity
Air Humidity
Capacitive measuring
Capacitive measuring
Measuring Ranges
0 to 100 % R.H.
±1.8 (10 to 90 % R.H.) Sensor Accuracy
Air Temperature
Air Temperature
Band Gap
Band Gap
Measuring Ranges
-20 to 70 °C
±0.5 (-10 to 70 °C) Sensor Accuracy
Structural Moisture
Structural Moisture
Measuring Ranges
5 to 98 % R.H.
0.2 to 3.7 wt.-%
Specifications
  • Handy pocket-sized moisture measuring meter for fast single and series measurements
  • Display of three values via LCD, resolution: 0.1 % or 0.1 °C
  • Automatic calculation of dew point temperature, equilibrium wood moisture content (EMC), absolute humidity in g/m³, enthalpy in kj/K, wet-bulb temperature in °C and water activity (aW)
  • Sorption isotherms for hardwood and softwood as well as for 10 different types of building material
  • Min, Max and Hold functions for measured values
  • Storage of the 5 most recent measured values
  • Total length: 510 mm, sensor pipe: 320 mm (length) and 5,5 mm (diameter)
  • Diaphragm filter for measuring in air containing dust, pollution, or high air flow velocity is standard equipment
  • Power supply: a 9-volt battery is included
Length0.175 m0.574 ft (0.175 m)
Width0.050 m0.164 ft (0.050 m)
Height0.030 m0.098 ft (0.030 m)
Weight0.170 kg0.375 lb (0.170 kg)
