Wood MoistureStructural Moisture

Hydromette
Compact

Ref.Nr. 30002010CombiStandalone

Moisture meter for various types of wood as well as for soft building materials

Description

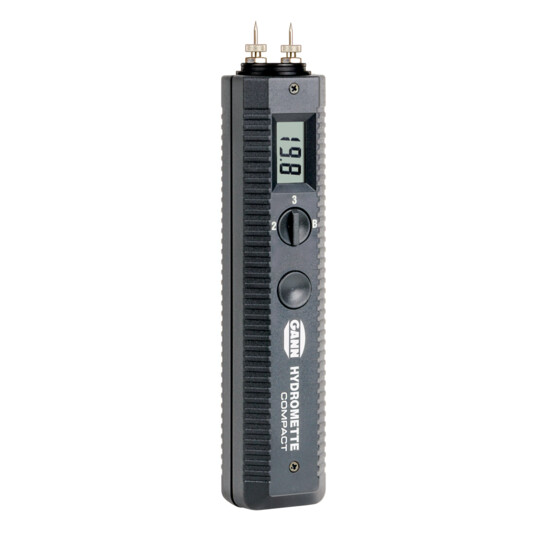

The Compact unit is an electronic wood and plaster moisture meter that uses the resistance principle of measurement.

The ergonomically designed housing is enclosed by the entire palm so that the measuring pins at the top of the unit can be pressed into the material to be measured. The slim pins allow the moisture in sawn timber, chipboard, veneers and wood fibre materials (up to 25 mm in thickness) as well as in regular gypsum or mixed plasters to be measured.

Ideal secondary meter for painting or interior fitting contractors or experienced do-it-yourselfers.

Applications
Wood Moisture
Wood Moisture
Resistance-based measuring
Resistance-based measuring
Measuring Ranges
5 to 20 % (dry mass)
Structural Moisture
Structural Moisture
Resistance-based measuring
Resistance-based measuring
Measuring Ranges
0.3 to 3.5 wt.-%
Specifications
  • Handy pocket-sized moisture measuring meter for fast single and series measurements

  • Wood moisture measurement: characteristic groups 2 and 3 are included in the meter, based on the 4-level wood species correction

  • Direct readout of wood and plaster moisture in weight-% on the LCD, resolution: 0.1 %

  • Comes with protective cap

  • Power supply: a 9-volt battery is included

Length0.200 m0.656 ft (0.200 m)
Width0.035 m0.115 ft (0.035 m)
Height0.035 m0.115 ft (0.035 m)
Weight0.130 kg0.287 lb (0.130 kg)
