Wood Moisture

Stick-in Electrode Pin Pair
M 20-HW 200

Ref.Nr. 31004350
Electrodes for resistance-based moisture measurements in chips, wood wool, veneer stacks, and bulk materials
DescriptionUsecases
DescriptionUsecases
M 20-HW 200

Description

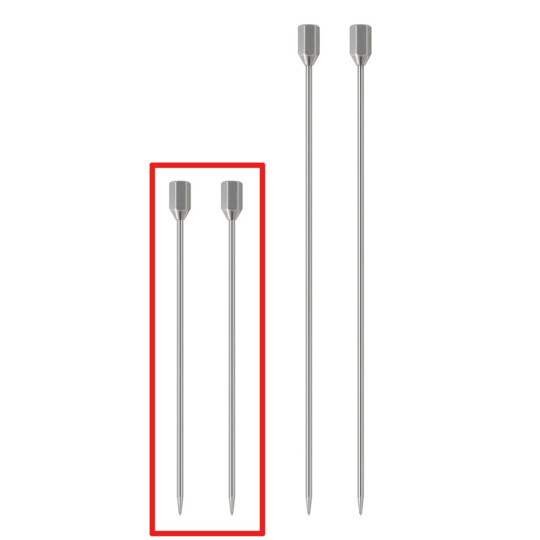

The M 20-HW 200 Stick-in electrode pin pair is used for resistance-based moisture measurements in chips, wood wool, veneer stacks, and bulk materials.

The measuring electrodes are made of stainless steel and are therefore robust and resilient. No rust, which might soil the surface and affect the contact to the material to be measured, can form.
As they are uninsulated, a large contact area is ensured. This reduces the risk of incorrect measurements and increases the reliability of the measurement results.

Measuring ranges

Wood Moisture

Wood Moisture

The electrode pair can be used with all hydromettes based on the resistance measurement method.
Resistance-based measuring
Resistance-based measuring
Measuring ranges
min.4 to max.100 % (dry mass)
min.3.1 to max.41 % water content

The actual measuring range depends on the connected measuring instrument.

Show compatible measuring instruments

Specifications

Pins: 200 mm (length) and 4 mm (diameter)

Carrier SystemNeeds one of these carrier systems

12 Measuring instruments compatible2 Usecases
M 20

Compatible instrumentsCan be used with these measuring instruments

32 Electrodes selectable
CH 17
4 to 100 % (dry mass)
0 to 200 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0.3 to 25 wt.-%
0.3 to 12 CM-%
0 to 100 % R.H.
±1.8 (10 to 90 % R.H.) Sensor Accuracy
-20 to 80 °C
±0.3 (0 to 60 °C) Sensor Accuracy
-40 to 380 °C
±0.5 (0 to 60 °C) Sensor Accuracy
-50 to 250 °C
-30 to 170 °C
-2,5 to 2,5 m/s
6 Electrodes selectable
BL H 40
5 to 40 % (dry mass)
8 Electrodes selectable
BL H 41
5 to 40 % (dry mass)
4.5 to 45 % (dry mass)
7 Electrodes selectable
BL HT 70
5 to 70 % (dry mass)
3.1 to 41 % water content
-50 to 250 °C
6 Electrodes selectable
BL A plus
5 to 50 % (dry mass)
5 to 70 % (dry mass)
21 Electrodes selectable
BL E
0.1 to 42.2 wt.-%
0.1 to 9.6 CM-%
0.7 to 60 wt.-%
2.3 to 87 digits
0 to 200 digits
5.5 to 58 % (dry mass)
-50 to 250 °C
-50 to 350 °C
6 Electrodes selectable
H 35
4 to 30 % (dry mass)
6 Electrodes selectable
HT 65
4 to 60 % (dry mass)
21 Electrodes selectable
HB 30
4 to 30 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
-20 to 199.9 °C
29 Electrodes selectable
HT 85 T
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
-20 to 200 °C
-50 to 250 °C
-50 to 350 °C
41 Electrodes selectable
RTU 600
4 to 100 % (dry mass)
0 to 80 digits
0.5 to 25 wt.-%
0.3 to 12 CM-%
0 to 199 digits
0.3 to 8.5 wt.-%
0.3 to 6.5 CM-%
0 to 100 % R.H.
-20 to 200 °C
-20 to 70 °C
-50 to 600 °C
-20 to 199.9 °C
-50 to 600 °C
