The name GANN stands for quality

Based on 50 years' experience, we develop and produce handheld meters as well as measuring and control systems for moisture measurement. As a market leader for a variety of measuring processes, in addition to high-quality, well-proven technology, we offer you optimal service and individual consulting: QUALITY - MADE BY GANN.

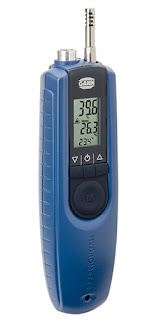

The Hydromette BL Compact TF 3 is an precise thermo-hygrometer for measuring the air temperature and the air humidity for a wide range of applications, e.g. monitoring of living room, air conditioning, printing plants, warehouses, museums, etc.

The measuring sensor is exchangeable. There are four different TF sticks that distinguish through sensor accurancy and sensor filters.

The Hydromette BL Compact TF 3  excels by the following technical enhancements and renewals, respectively:
-  The Hydromette BL Compact TF 3 is supplied with the TF stick 16 K-21
-  Due to the use of TF sticks it is possible to choose which sensor is the most suitable for the respective ambient climate
- Several of these sensors (plug-in TF sticks) can be put in different places (environments). Thus, successive measurements in those places can be carried out more quickly, for long adaption times can be avoided (compared to a meter with a fixed sensor)

More information: technical information and accessories




The BL Compact B 2 is an electronic building moisture indicator for a non-destructive measurement of moisture in building materials.

The Hydromette uses the dielectric constant measuring / high frequency principle. The ball probe can be applied flexibly and is used for the detection of moisture in all kinds of building materials. It is also suitable for checking the dispersion of moisture in walls, ceilings and floors.

The Hydromette has an audible alarm, which will resound if the values exceed the limit. Limits for the building materials can be set individually. The "hold"-function enablesan easier measurement for locations that are hard to access.

An ideal non-destructive device for measuring building moisture.



The Hydromette BL Compact B 2  excels by the following technical enhancements and renewals, respectively:

-  A considerably stronger high frequency measuring field allows a deeper penetration depth into the construction material

-  The higher resolution of the measured values from 0 – 199 Digits realizes an even exacter localization of moisture in building materials. Up to now, this was only reserved to superior moisture meters

- For the direct indication in CM % the meter has been upgraded with additional building materials


Example of the application of the Hydromette BL Compact B 2










The active electrode LB 71 is used for measuring building moisture. It is based on the capacitive high-frequency measuring method. It can be used together with the following Hydromette devices: UNI 1, UNI 2, HB 30, RTU 600 and M 4050. The active electrode LB 71 replaces the active electrode LB 70 and the Hydromette Compact LB (in combination with a suitable Hydromette).


The telescopic tube is made of sturdy but lightweight aluminium. It can be stagelessly extended up to 1.50 m. Spots that would be difficult to access can be reached easily now –  there is no need to bend down or to use a ladder anymore.


The active electrode has built-in electronics for non-destructively sensing moisture in all types of building materials and the possibility for detecting the moisture distribution in ceilings, walls, screeds and other set building materials.


Measuring ranges:

0 to 199 digits (scanning mode)
moisture qualification using the table

0,3 to 8,5 wt.-%
depending on the building material, conversion by means of the table

0,3 to 6,5 CM-%
depending on the building material, conversion by means of the table


See our info sheet to get a overview of all information about the active electrode LB 71.


For further information, please do not hesitate to contact us – either via email ([email protected]) or by phone 0049-7156-490712.


Contributing to the conservation of energy, the insulation of buildings becomes more and more important. Insulating wall panels made of wood fibres are used increasingly. Therefore GANN got together with well-known manufacturers at an early stage and developed calibration curves for moisture measurement.

A new member has joined our blue product series: Hydromette BL H 41 for moisture measurement in wood fibre insulants!



The Hydromette BL H 41 is a special version based on the BL H 40. In addition to the known functions the BL H 41 also features 6 new characteristic curves for wood fibre insulants.


These curves are based on products by reputable manufacturers: Steico, Gutex , Schneider, Pavatex and Agepan.  They are grouped according to the gross density of the material (in kg/m3) and the board manufacturing process (wet/dry).


This device is suited for everyone who processes or assesses these materials. Preliminary checks can help prevent future damage caused by moisture, e.g. flaking of plastering may be avoided.





Measuring ranges:
Wood moisture:                                                  5.5 to 40 % (dry mass)
Wood fibre insulating boards:                         4.5 to 45 % (dry mass)
temperature compensation:                            -10 to  +40 °C

The Hydromette BL H 41 is available in a complete set, or as a single device.

order code BL H 41 - set 1:                           12101
order code BL H 41 - set 2:                           12102
order code BL H 41 – without accessory:   11101

Further information can be found on our info sheet.

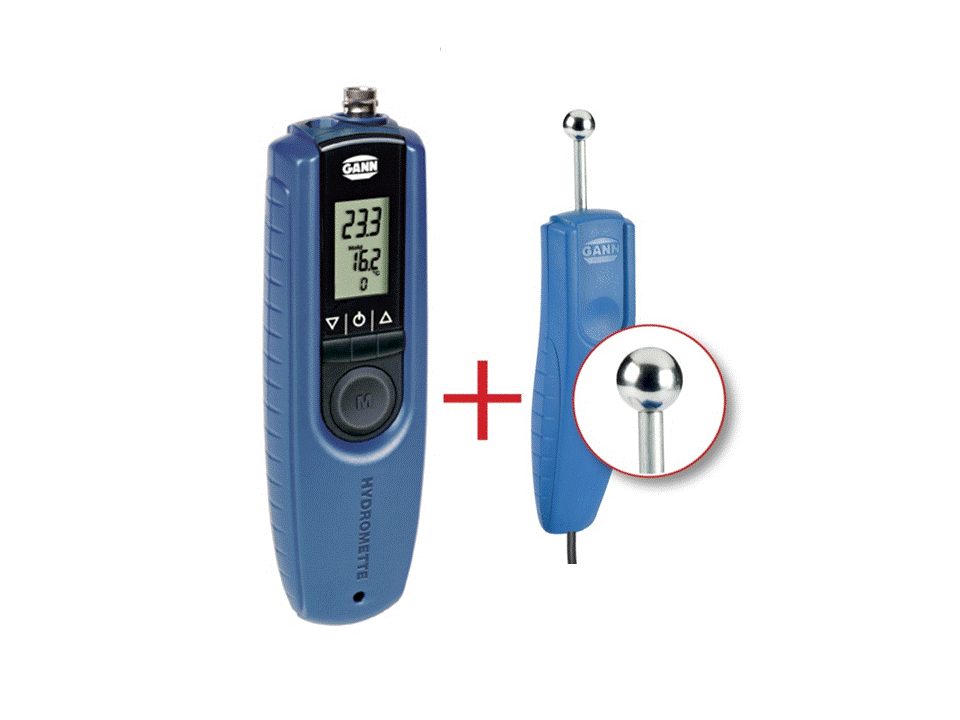

The Hydromette BL E with new features!



Due to this upgrade it is now possible to connect the active electrode B 55 BL to the Hydromette BL E. Thus, the meter does not only offer resistance-based measurement, but also a non-destructive “scanning” mode for comparative measurement in building materials. Moreover, the Hydromette BL E is also capable of measuring wood moisture. It offers two different groups of wood species. All these new features make the Hydromette BL E a great multi-function instrument.

The B 55 BL enables tracing moisture and determining the distribution of it in building materials of all kinds. It uses capacitive high-frequency measurement within a measuring range from 0 to 200 digits. A limit value can be set from 0.1 to 199 digits. If this value is exceeded, an acoustic alarm signal will sound.

The "new" Hydromette BL E is the functional successor to the proven Hydromette HB 30.

The order number of the Hydromette BL E remains the same as before (Order number 11300).

In addition, we would like to draw your attention to our new sets containing the Hydromette BL E & the active electrode B 55 BL:

Set 3 – Hydromette BL E, M6 stick-in electrode pair, 1 can of contact paste, MK 8 measuring cable, active electrode B 55 BL, carrying case VII (Order number 12301)

Set 4 – Hydromette BL E, M6 stick-in electrode pair, 1 can of contact paste, MK 8 measuring cable, active electrode B 55 BL, M25-100 brush electrode pair, carrying case VII (Order number 12302)
